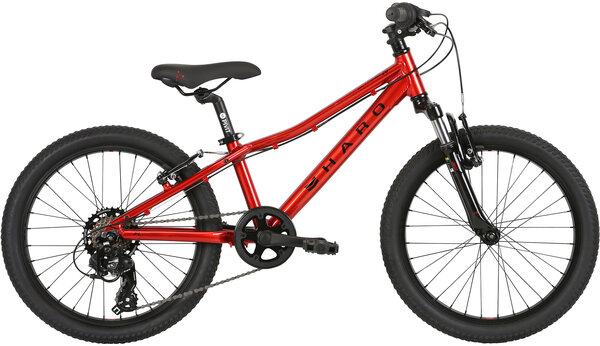

Haro Flightline 20
Details
Thanks to its lower stand-over height frame and 20" wheelset, the Flightline 20 is perfect for adventurous youngsters who love to ride but aren't quite ready for the larger 24" or 26" wheel-sizes yet. The FL 20 features Haro's low profile X6 alloy frame with a ton of stand-over clearance. Bumps don't stand a chance thanks to its suspension fork with 35mm of travel. The FL 20 features a new 1x7-speed drive-train with a single chainring and Revo shifter to make it easier to switch gears.
- Flightline X6 Series aluminum frame
- HL 410E suspension fork w/ 30mm travel
- 1-1/8" Threadless headset
- Alloy 32T crankset w/ double chainguard
- Sealed cartridge BB set
- New Shimano Tourney TY-200 rear derailleur
- New Revo 7-spd shifter
- New Tourney TZ510 7-spd 14-34T freewheel
- Aluminum single wall 20" rims w/ 32h hubs
Specs
Frame | Haro Flightline FL3G 6000 series Aluminum | Low stand-over height | V-Brake bosses |
---|---|
Fork | HL 410E 30mm travel |
Headset | 1-1/8-inch threadless steel cups | loose ball | Nylon Top |
Rims/Wheels | Aluminum single wall 20-inch |
Hubs | Pivit steel 32h nuts |
Spokes | Steel BED |
Tires | H-5129 | 20-inch X2.0-inch |
Crankset | Aluminum double chain guard | 5-inch / 127mm |
Chainrings | 32T |
Bottom Bracket | Sealed cartridge |
Chain | KMC Z7 1/2-inch*3/32-inch |
Rear Derailleur | New Shimano Tourney TY-200 |
Cassette/Rear Cogs | New Shimano Tourney MF-TZ510 7-spd freewheel 14-34T |
Shifters | Shimano Revo 7-spd |
Handlebars | Pivit Aluminum 25mm riser bar | 31.8mm O.D. |
Tape/Grips | Haro MTB |
Stem | Pivit melt forged stem 4 bolts | 31.8mm bar bore |
Brake Levers | Promax BL-81G | Short reach |
Brakes | Promax TX-121 V-Brakes |
Pedals | MTB nylon body |
Saddle | Haro Flightline Jr |
Seat Post | Pivit Aluminum micro adjust 27.2mm |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Magenta/White / 20-inch | 691840110136 | 11013 | 210000011001 |
Red/Black / 20-inch | 691840110129 | 11012 | 210000011003 |
